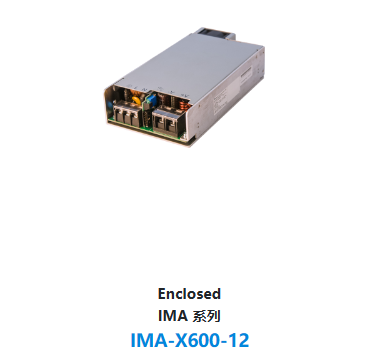

IMA-X600-12

IMA-X600-12

  • Safety approval for Medical (IEC 60601-1-2), Industrial (IEC 62368) and IT
  • Wide operating input voltage range: 80 Vac to 275 Vac or 120 Vdc to 300 Vdc
  • Wide adjustable output voltage range (+/- 20%)
  • 5 Vdc standby output
  • High efficiency: up to 94%
  • Size: 4 x 8 x 1.6 in (1U design)
  • Variable speed fan control
  • Low acoustic noise level of less than 38.5 dB(A)
  • Active current sharing
  • 2 x MOPP
  • PMBus™ compatible for control, programming and monitoring
  • 500,000 hour MTBF
  • Optional conformal coating
