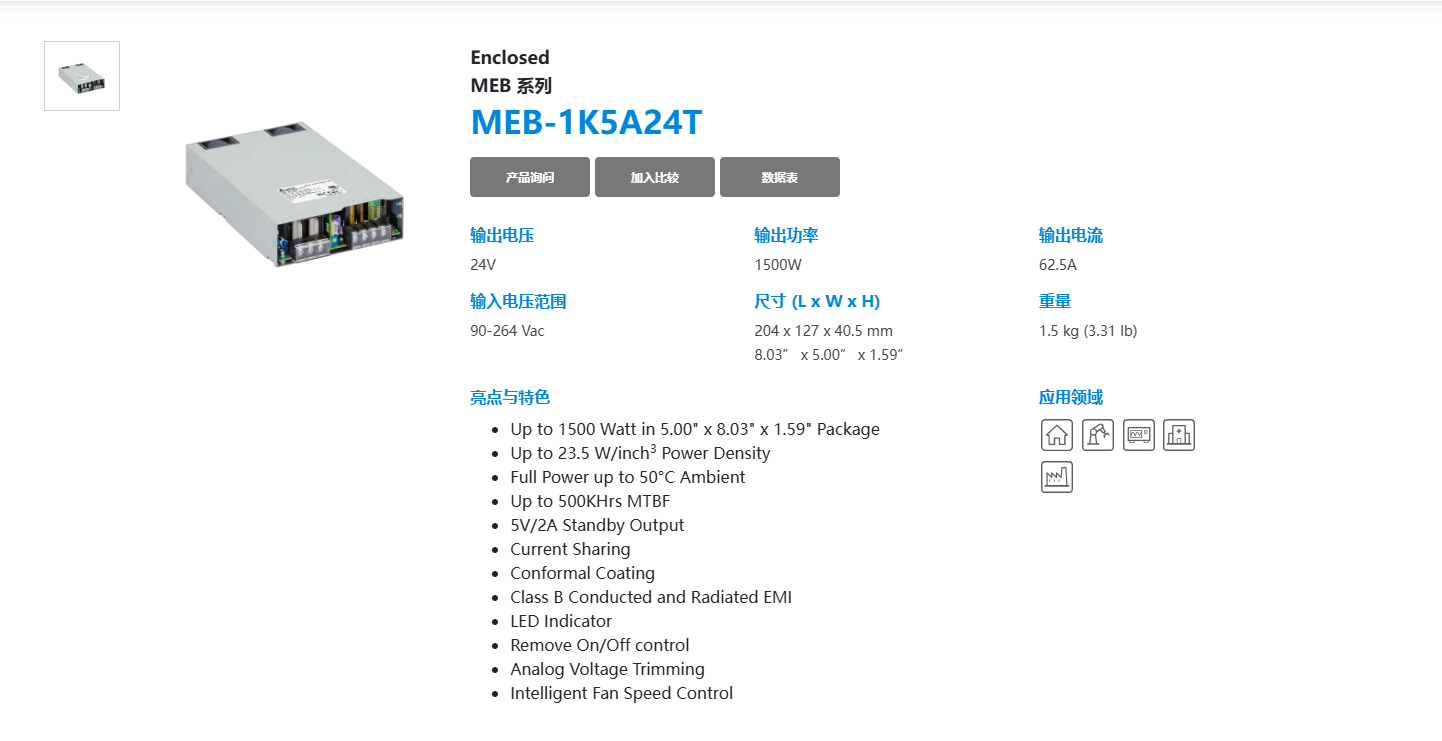

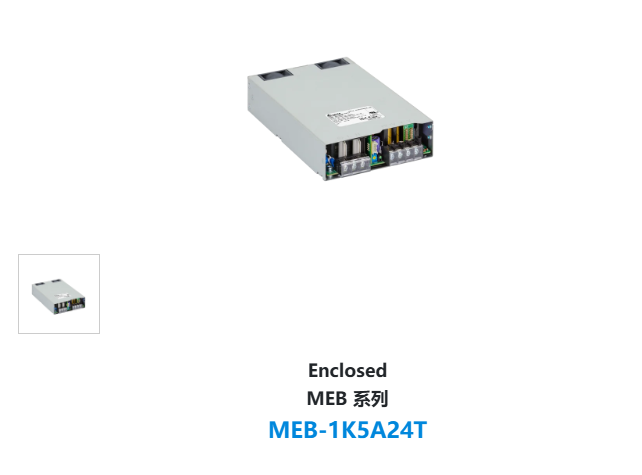

MEB-1K5A24T
5"x8.03"x1.59"尺寸优化，可高达 1500 Watt
Up to 1500 Watt in 5.00" x 8.03" x 1.59" Package
功率密度可·高达23.5 W/inch3
Up to 23.5 W/inch3 Power Density
全功率运行·温度可高达50°C
Full Power up to 50°C Ambient
MTBF高达500KHrs
Up to 500KHrs MTBF
5V/2A备用输出
5V/2A Standby Output
当前的分享
Current Sharing
保形涂层
Conformal Coating
B类传导和辐射电磁干扰
Class B Conducted and Radiated EMI
领导的指示
LED Indicator
移除开/关控制
Remove On/Off control
模拟电压微调
Analog Voltage Trimming
风扇速度控制
| 输出 | MEB-1K2A24TABA | MEB-1K2A42TABA | MEB-1K2A48TABA | |
| 输出电压 | 24V | 42V | 48V | |
| 输出电流（最大值） | 50.0A | 28.5A | 25.0A | |
| 输出功率 | 1200W | 1200W | 1200W | |
| 负载调整率 | 0.02 | |||
| 波纹与噪音 | 1%typ.pk-pk额定电压@额定负载 | |||
| 输入 | ||||
| 输入电压范围 | 85-264VAc | |||
| 输入电压频率 | 47-63Hz | |||
| 满载效率 | 115VAc(60Hz) | 90.0%typ. | 90.9%typ. | 91.5%typ. |
| 230VAc(50Hz) | 93.0%typ. | 93.2%typ. | 94.0%typ. | |
| 漏电流 | 264VAc | Input-PE:0.3mA@NC,<1mA@SFC … Output-PE:0.1mA@NC,<0.5mA@SFC |
||
| 机构 | ||||

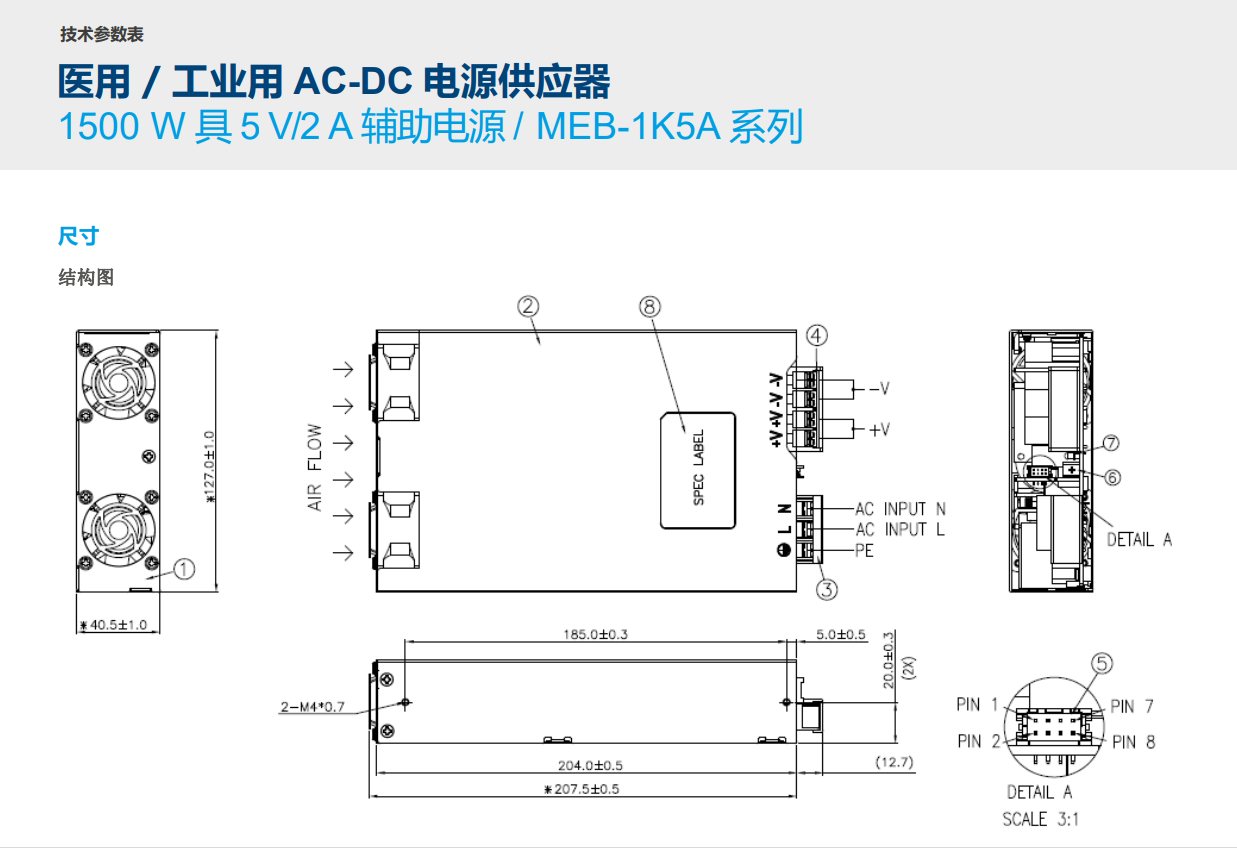

| 尺寸(L×W×H) | mm | 204×127×40.5 | 204×127×40.5 | 204×127×40.5 |
| inch | 8.03×5.0×1.59 | 8.03×5.0×1.59 | 8.03×5.0×1.59 | |
| 重量 | kg | 1.5 | 1.5 | 1.5 |
| lb | 3.3 | 3.3 | 3.3 | |
| 平均故障间隔时间 | >500,000hrs | |||
| 电磁兼容 | EN55011/EN55032,FCCTitle47:ClassB | |||
| 环境 | ||||
| 运行温度 | -20℃至+70℃ | |||
| 储存温度 | -40℃至+85℃ | |||
| 运行湿度 | 5至95%RH（无冷凝） | |||
| 运行海拔高度 | 0至5,000m(0至16,400ft) | |||
| 医疗等级 | ||||
| 隔离电压类型 | BF | |||
| MOPP | 2×MOPP | |||
